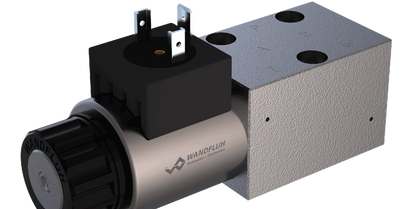

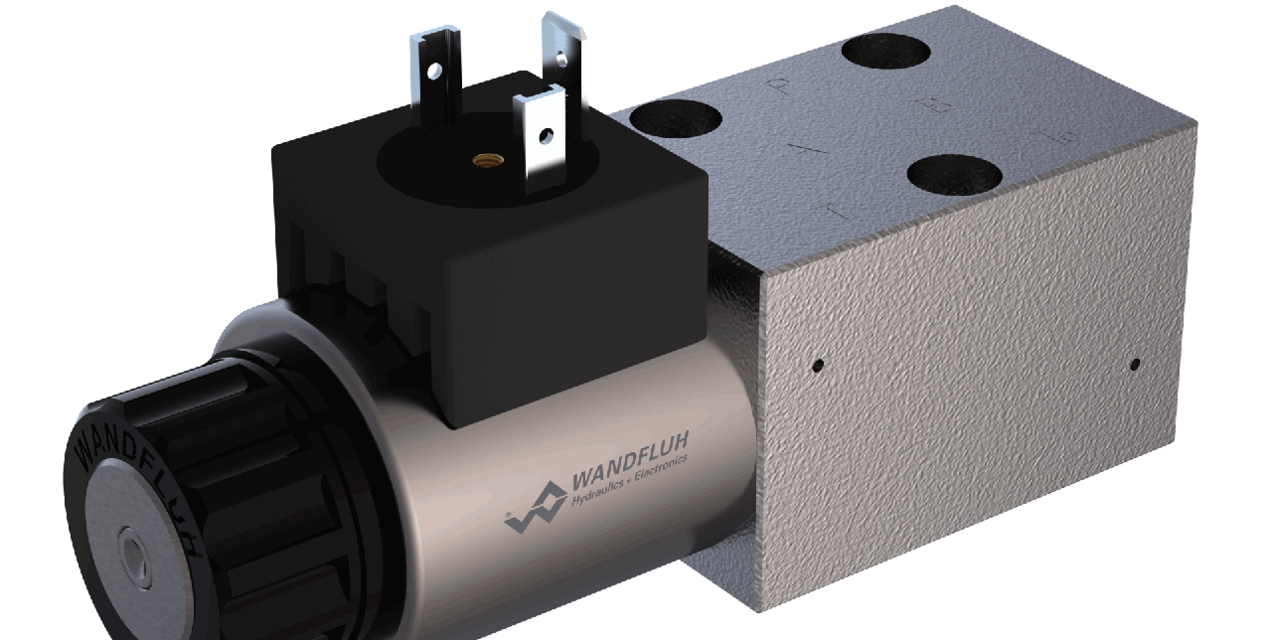

Wandfluh WDEFA04-AB3-1/X-G24 WD_FA04 SOLENOID OPERATED SPOOL VALVE (SLIP-ON COIL)
Wandfluh WDEFA04-AB3-1/X-G24 WD_FA04 SOLENOID OPERATED SPOOL VALVE (SLIP-ON COIL)
Regular price
$219.00 USD
Regular price
Sale price
$219.00 USD
Shipping calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*
Â
WD_FA04
Direct operated solenoid spool valve with 4 connections in 5 chamber design. Spool detented or with spring reset.
ACTUATIONActuation Switching solenoid, wet pin push type,pressure tightExecution Economy: V.E37 / 19 x 40 (Data sheet1.1-168)Medium: V.E37 / 19 x 50 (Data sheet1.1-168)N.S35 / 19 x 50 (Data sheet 1.1-175)Connection Connector socket EN 175301 – 803Connector socket AMP Junior-TimerConnector Deutsch DT04 – 2P
HYDRAULIC SPECIFICATIONSWorking pressure pmax = 350 bar (PT < 20 bar)pmax = 315 bar (PT > 20 bar)Tank pressure pTmax = 100 barMaximum volume flow Qmax = 30 l/min, see characteristicsLeakage oil See characteristicsFluid Mineral oil, other fluid on requestViscosity range 12 mm2/s…320 mm2/sTemperature rangefluid-25…+70 °C (NBR)-20…+70 °C (FKM)ContaminationefficiencyClass 20 / 18 / 14Filtration Required filtration grade ß 10…16 ≥ 75,see data sheet 1.0-50
