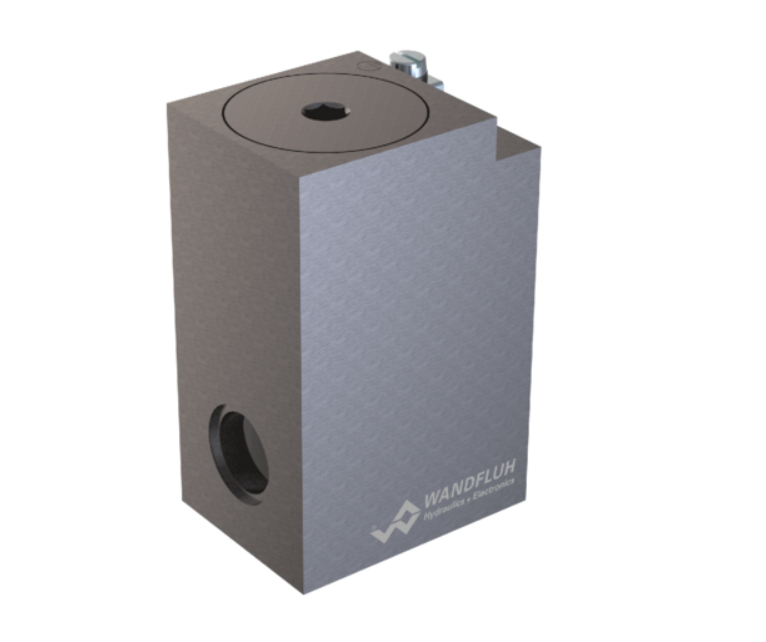

wandfluh coil MKY45/18X60-G24/L15 Solenoid coil MKY45/18x60 For explosion-hazard zonesProtection class IP65/IP66/IP67/IP68/IP69K
wandfluh coil MKY45/18X60-G24/L15 Solenoid coil MKY45/18x60 For explosion-hazard zonesProtection class IP65/IP66/IP67/IP68/IP69K
Regular price
$699.00 USD
Regular price
Sale price
$699.00 USD
Shipping calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*

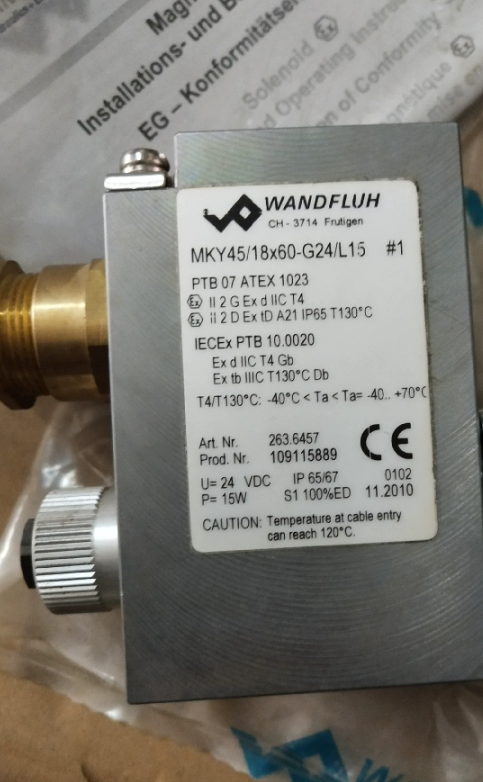

MKY45/18X60-G24/L15
Solenoid coil MKY45/18x60 For explosion-hazard zonesProtection class IP65/IP66/IP67/IP68/IP69K，
Ex db IIC T6, T4 Gb (Zone 1)
Ex tb IIIC T80°C, T130°C Db (Zone 21)
Type — Ex-proof solenoid coil (MKY45/18x60 series)
Voltage — 24 V DC (G24)
Power — 15 W (L15)
Protection class — IP65 / IP66 / IP67
Certifications — ATEX, IECEx, etc. (e.g., II 2 G Ex d IIC T4/T6, II 2 D Ex tb IIIC T130°C/T80°C)
Temperature range — Execution L15 / L12:
Temperature range „-25° to...“-25…+70°C (operation as T1…T4/T130°C)
Temperature range „-40° to ...“-40…+70°C (operation as T1…T4/T130°C)
Temperature range „-60° to ...“-60…+70°C (operation as T1…T4/T130°C)
ELECTRICAL SPECIFICATIONSSupply voltage G12: 12 V +10%, G24: 24 V +10%Residual ripple < +/-5%Fuse lowNo-load current approx. 20 mAMax. currentconsumption No-load current + limitingcurrent of the solenoidAnalogue input 1 input non-differentialVoltage / current (switchable by means of parameter)0...+/- 10V or 0/4...20mAResolution 10-BitInput resistance Voltage input >100 kΩ(Input current < 5 mA)Load for current input = 124 ΩStabilised output 5 VDCvoltage max. load 20 mASolenoid current:• Minimal current Imin Adjustable 0…Imax mAFactory setting 30 mA• Maximal current Imax G24/L15 Adjustable Imin…510 mAFactory setting 450 mA
Dither Frequency adjustable 4…500HzFactory setting 80HzLevel adjustable 0…400mAFactory setting 150mATemperature drift <1% at ∆T = 40°CDigital inputs 1 input high-active, no pull-up/downSwitching threshold high 6...32 VDCSwitching threshold low 0…1 VDCUsable as frequency input(frequency 5...5000 Hz) and as PWM input(automatic frequency recognition)USB interface Via digital inputRequires the Wandfluh USB adapter PD2EMCImmunity EN 61 000-6-2Emission EN 61 000-6-4
weight 1.7kg
