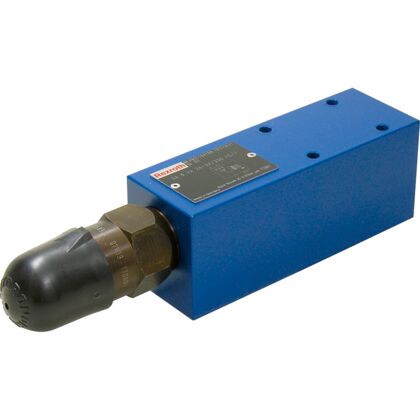

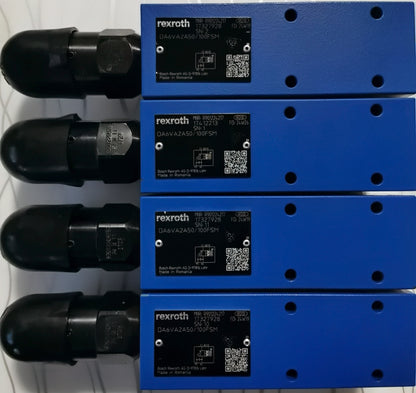

REXROTH R901224217 PRESSURE CUT OFF VALVE R901224217 DA6VA2A5X/100FSM



general
Size

6
Weight

kg

2.2
Installation position

any
Ambient temperature range

NBR seals

°C

-30 … +80
FKM seals

°C

-20 … +80
hydraulic
Size

6
Type

Type "DA 6 VP"    Type "DA 6 VA"
Maximum operating pressure

Port "A" (Y) (leakage pilot control) 1)

bar

100
-    -
-
Port "B" (actuator) 2)

bar

350
-    -
-
Port "P" (pump)

bar

350
-    -
-
Port "T" (tank)

bar

200
-    -
-
Port "A" (pump)

bar

-    350
Port "B" (Y) (leakage pilot control)

bar

-    100
Port "P" (actuator)

bar

-    350 3)
Port "T" (tank)

bar

-    200
Set pressure range

Pressure rating 50 bar

bar

25 … 50
Pressure rating 100 bar

bar

50 … 100
Pressure rating 200 bar

bar

100 … 200
Pressure rating 350 bar

bar

150 … 350
Switching pressure differential

adjustable from 10 % to 50 % of the nominal value
Maximum flow

l/min

40
Hydraulic fluid

see table
Hydraulic fluid temperature range

FKM seals

°C

-30 … +80
FKM seals

°C

-20 … +80
Viscosity range

Maximum

mm²/s

10 … 800
Recommended

mm²/s

20 … 60
Maximum admissible degree of contamination of the hydraulic fluid 4)

Class 20/18/15 according to ISO 4406 (c)
1)    Attention! The applied pressure adds to the set pressure! The switching pressure differential remains unchanged within the setting range!
2)    (after switching P to T)
3)    (after switching A to T)
4)    The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
Hydraulic fluid

Classification

Suitable sealing materials

Standards

Mineral oil

HL, HLP

FKM, NBR

DIN 51524

Bio-degradable

Insoluble in water

HEES (synthetic esters)

FKM

VDMA 24568

HETG (rape seed oil)

FKM, NBR

Soluble in water

HEPG (polyglycols)

FKM

VDMA 24568

Other hydraulic fluids on request

For applications outside these parameters, please consult us!
