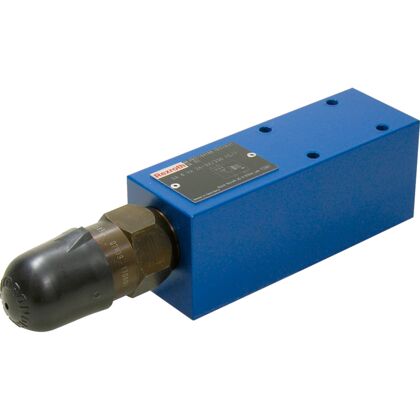

R901224217 DA6VA2A5X/100FSM, rexroth PRESSURE CUT OFF VALVE

R901224217
DA6VA2A5X/100FSM
PRESSURE CUT OFF VALVE
Size: 6 (NG6 / CETOP 03 interface)
Component series: 5X
Adjustment type: A2 (bushing with hexagon and protective cap; stepless adjustment of switching pressure differential)
Nominal pressure setting range: Up to 100 bar
Maximum operating pressure: 350 bar
Maximum flow: 40 L/min
Mounting: Subplate mounting (ISO 4401-03-02-0-05 / CETOP 03)
Seals: NBR seals
Fluid: Mineral oil (HL/HLP per DIN 51524); viscosity 10–800 mm²/s
Fluid temperature: –20 °C to +80 °C
Ambient temperature: –30 °C to +80 °C (NBR)
Installation position: Any
Weight. 2.2 kg
