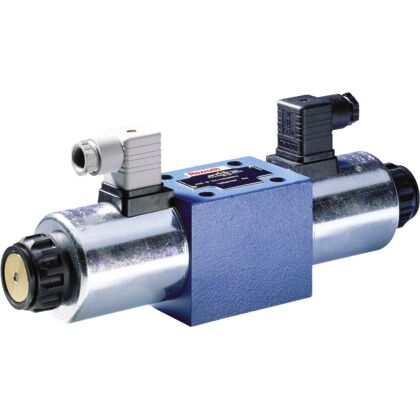

R900592338 DIRECTIONAL SPOOL VALVE 4WE10J3X/CW110N9K4 Size 10, Symbol J, with solenoid actuation, 110…120 VAC 50/60 Hz
R900592338 DIRECTIONAL SPOOL VALVE 4WE10J3X/CW110N9K4 Size 10, Symbol J, with solenoid actuation, 110…120 VAC 50/60 Hz
Regular price
$299.00 USD
Regular price
Sale price
$299.00 USD
Shipping calculated at checkout.
R900592338
DIRECTIONAL SPOOL VALVE 4WE10J3X/CW110N9K4
Size 10, Symbol J, with solenoid actuation, 110…120 VAC 50/60 Hz
Connection diagram ISO 4401-05-04-0-05
Product family WE 10...C
Operating pressure, max. [bar] 315.0
Max. flow [l/min] 120.0
Spool symbol Symbol J
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Valve ports number 4
Supply voltage 110…120 VAC 50/60 Hz
Electrical connector Connector, 3-pole (2 + PE)
Electric connection description Connector, 3-pole (2 + PE) according to EN 175301-803
Conformity CE
Hydraulic fluid HFC
HL
HLP
HLPD
HVLP
HVLPD
Seals NBR
Weight [kg] 4.42
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*
