MOOG G771K615A ,771, 772, 773 Series Servo Valves
MOOG G771K615A ,771, 772, 773 Series Servo Valves
Regular price
$3,999.00 USD
Regular price
Sale price
$3,999.00 USD
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
Image shown is a representation only. Actual product may vary

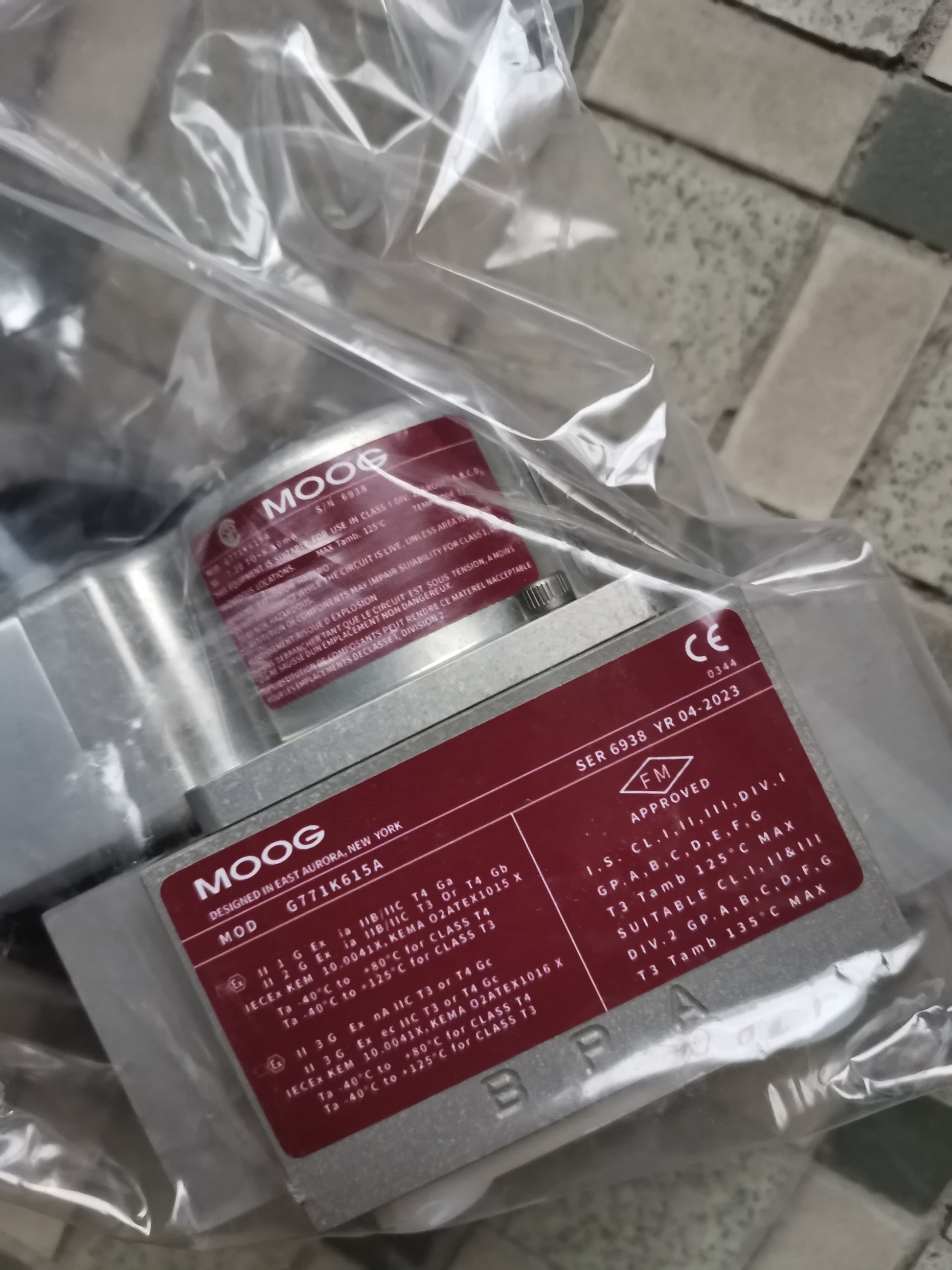

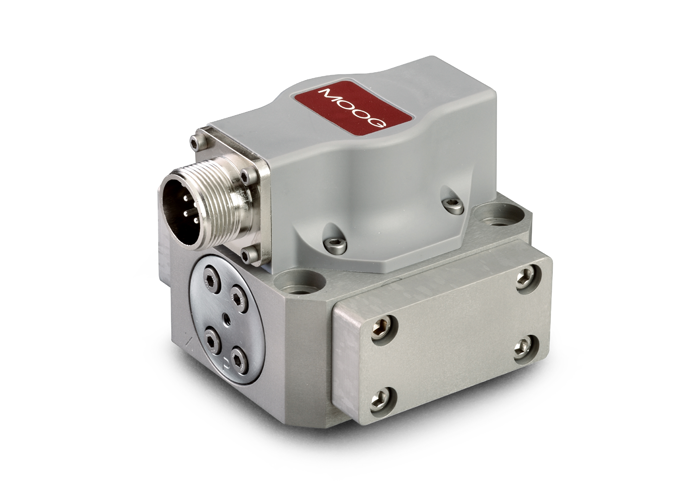

The 771, 772, and 773 Series flow control servo valves are throttle valves for 3 and preferably 4-way applications. They are a high performance, 2-stage design that covers the range of rated flows from 4 to 57 l/min (1 to 15 gpm) at 210 bar (3000 psi) valve pressure drop per spool land. These valves are suitable for electrohydraulic position, speed, pressure or force control systems with high dynamic response requirements. The 77X valves are ideally suited for applications where superior dynamics are a must.
Features:
2-stage flow control Mechanical Feedback (MFB) Servo Valve
Low friction, double nozzle pilot stage technology provide high dynamics, high resolution and low hysteresis
High spool driving forces and rugged design ensure long-life operation
Small body size
Instrinsically-safe version available for applications requiring products certified for potentially hazardous environments
Hydraulic Data
Rated Flow* 1.9 to 57 l/min (0.5 to 15 gpm)
Standard Configurations 4, 10, 19, 38, 57 l/min
(1, 2.5, 5, 10, 15 gpm)
Max. Operating Pressure 210 or 350 bar (3,000 or 5,000 psi)
Performance Data
100% Step Response** 4 to 17 ms
Frequency Response*** 115 to 215 Hz
Electrical Data
Rated Signal**** 8 to 200 mA
Standard Configurations 8, 15, 20, 40, 200 mA
Physical Data
Size (Mounting Pattern) (G)771: Size 02 (ISO 10372-02-02-0-92)
(G)772: Size 03 (ISO 10372-03-03-0-92)
(G)773: Moog Standard
Weight
0.86 kg (1.9 lbs)
Additional Options
Intrinsically Safe, Magnetic Null Adjust, Vented Motor Cap, Reverse Polarity
Contact Industrial Application Engineering for additional Flow, Pressure and other options
MOOG G771K615A ,771, 772, 773 Series Servo Valves
* @ ∆p 70 bar (1,000 psi)
** Response at 3,000 psi System Pressure
*** at 90° Phase Lag
**** Single Coil
