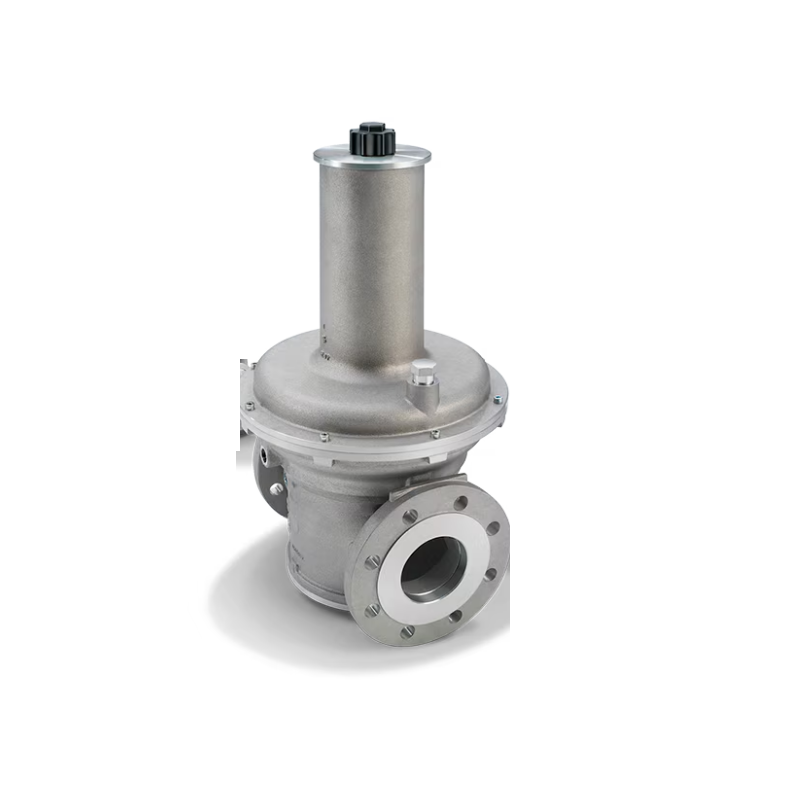

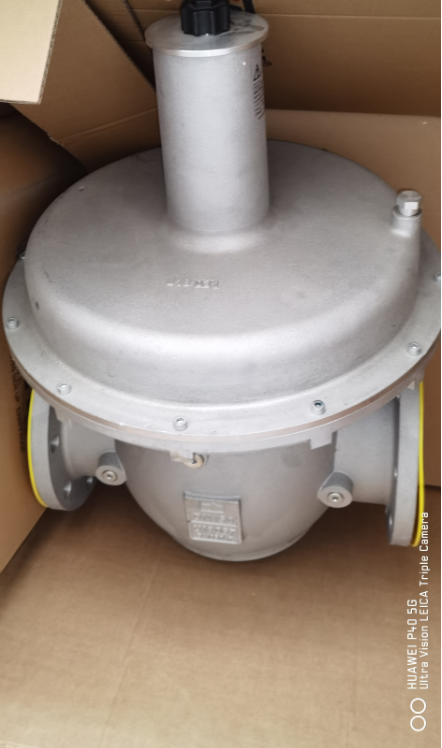

kromschroder 86053220, VGBF 150F05-3 Type: Pressure regulator
kromschroder 86053220, VGBF 150F05-3 Type: Pressure regulator
Regular price
$11,999.00 USD
Regular price
Sale price
$11,999.00 USD
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*
Â
86053220, VGBF 150F05-3
Type: Pressure regulator
Spring-loaded, with inlet pressure compensation diaphragm and zero shut-off, to maintain a constant set pressure
Nominal diameter: DN 150
Pipe connection: Flange to ISO 7005
Inlet pressure: pu max. 0.5 bar
Pressure test point: Screw plug at the inlet and outlet
Gas type: For gas, EU certified
Outlet pressure: Set to 20 mbar (range: 10-30 mbar)
weight 50kg
86053220, VGBF 150F05-3, [mm]
