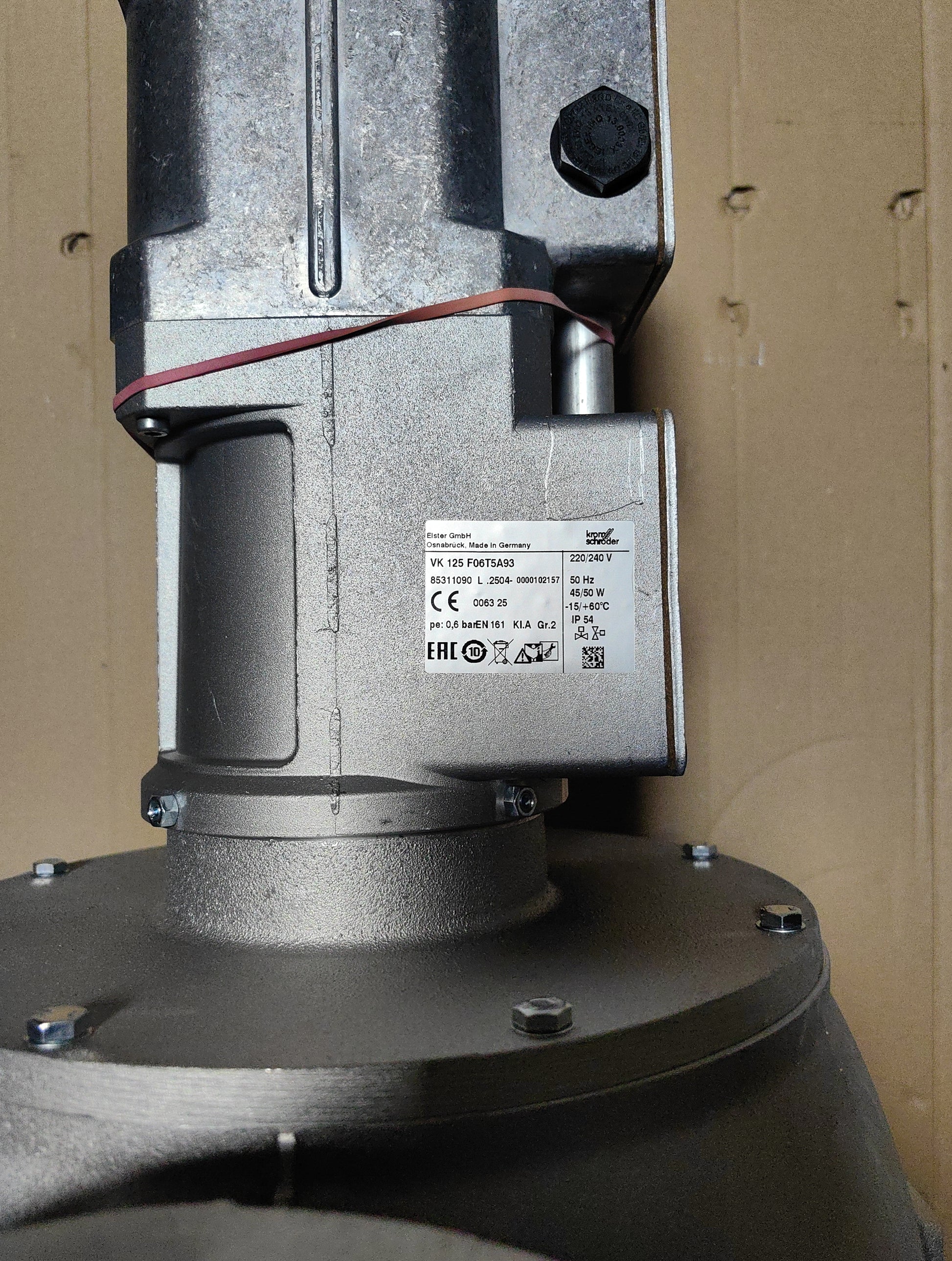

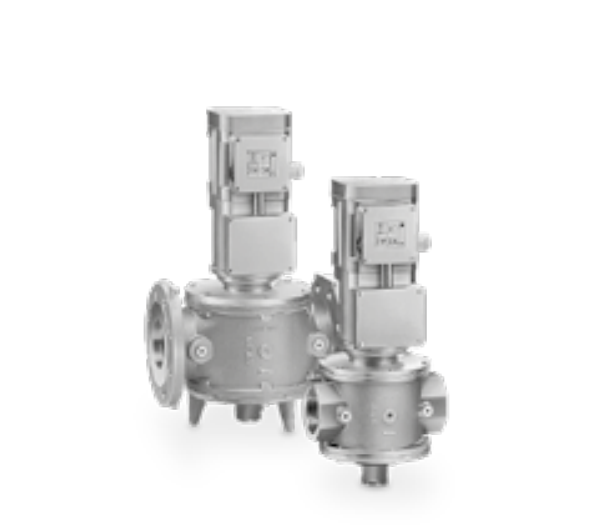

kromschroder 85311090, VK 125F06T5A93 Type: Motorized valve for gas

85311090, VK 125F06T5A93

Type: Motorized valve for gas
For automatic shut-off, closed when de-energized, slow opening, quick closing, for natural gas, town gas, LPG and air, also suitable for biologically produced methane and landfill gas, Class A to EN 161, EU certified
Nominal diameter: DN 125
Pipe connection: Flange to ISO 7005
Inlet pressure: pu max. 600 mbar
Mains voltage: 220/240 V~, 50 Hz
Valve housing: AlSi
Electrical connection: Metal terminal connection box, IP 54
Pressure test point: Screw plugs at the inlet and outlet

weight 29kg

85311090, VK 125F06T5A93, [mm]
