kromschroder 74960690, BCM 400S0B1/1-0 Type: Fieldbus interface
kromschroder 74960690, BCM 400S0B1/1-0 Type: Fieldbus interface
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*
74960690, BCM 400S0B1/1-0
Type: Fieldbus interface
For connection to an automation system, start, reset and capacity adjustment can be controlled using the fieldbus. The current program status, the signal status of the inputs and outputs (FCU/BCU) as well as the flame signal and statistical data can be read via the fieldbus.
Series: 400
Communication: Standard communication
Fieldbus interface: PROFIBUS
Connection: RS 485 PROFIBUS chassis socket, 9-pin
Bus control: None
weight 0.2kg

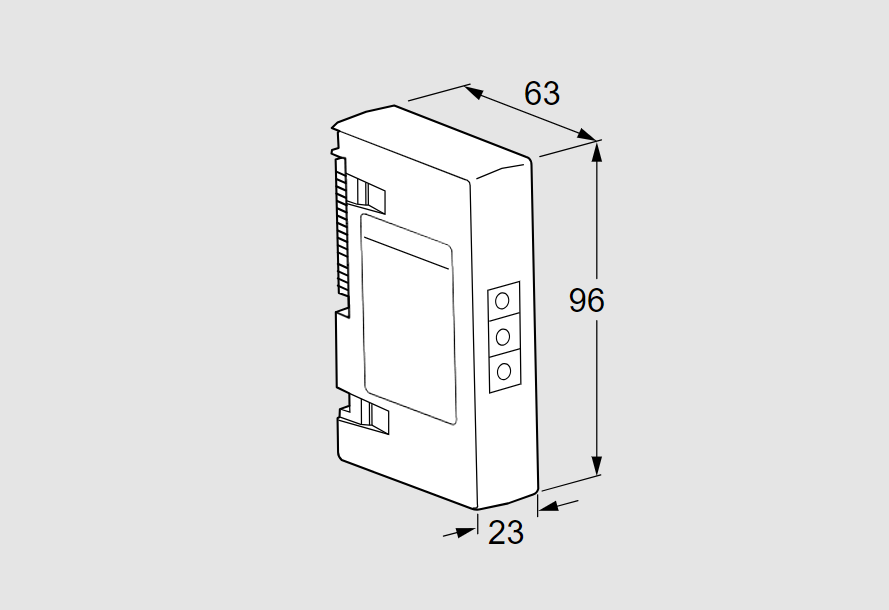

74960690, BCM 400S0B1/1-0, [mm]
