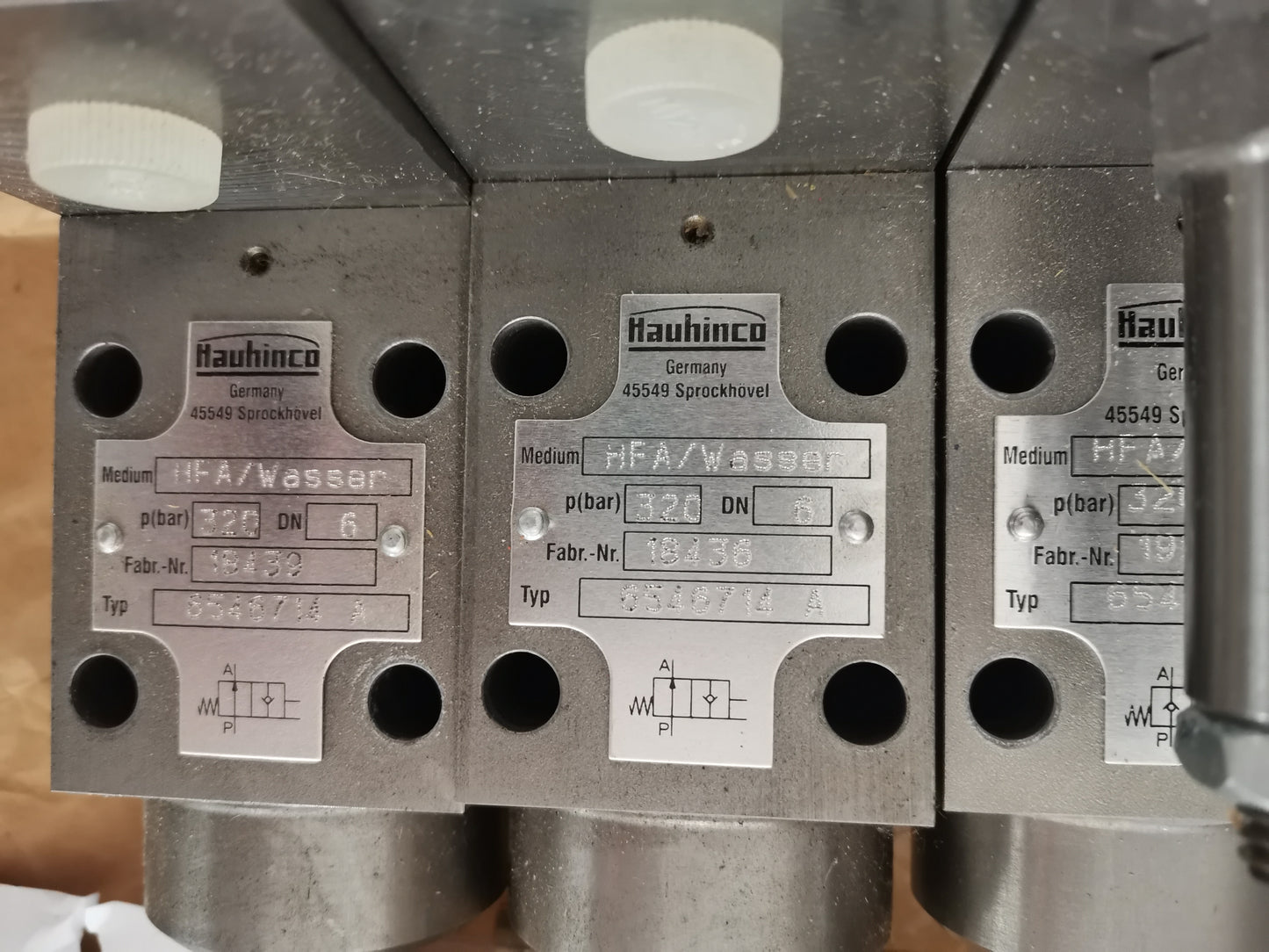

hauhinco 6546714, 2-2 way seat valve DN6 PN320

hauhinco 6546714, 2-2 way seat valve DN6 PN320

$1,599.00 USD
$1,599.00 USD
Sale Sold out
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***

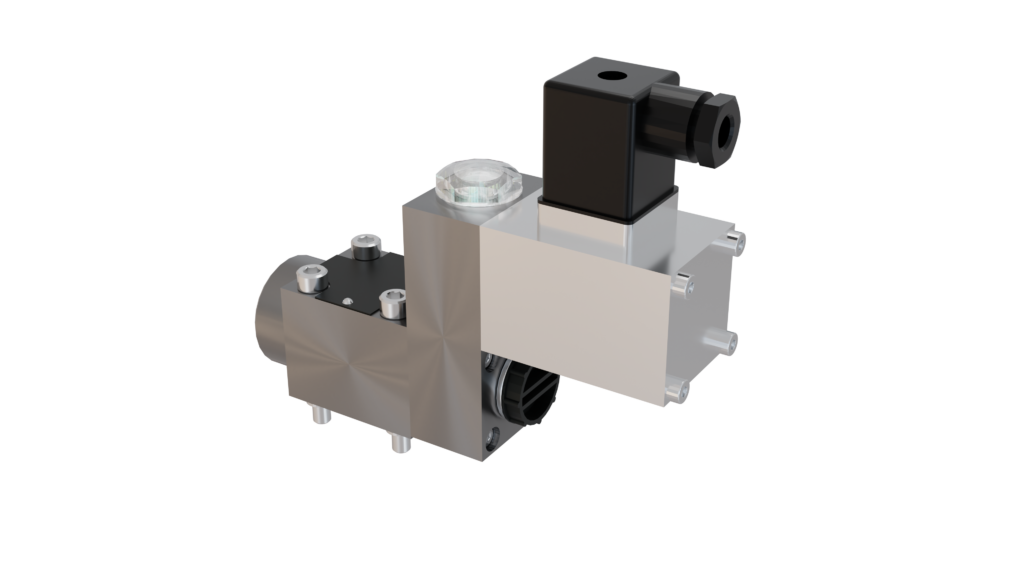

*Image shown is a representation only. Actual product may vary*



2-2 way seat valve DN3 PN320

  • Operating pressure: 320bar
  • Nominal size(s): DN6
  • max. Flow rate: 15l/min
  • Ways: 2/2

Features

  • Directly actuated directional seat valve controlling pressurised media.
  • The valve seat seals hermetically preventing internal leaks.
  • All parts are made of corrosion-resistant materials, and they are easily replaceable.
  • Valve design in a structural plate form.
  • On request, the valve can be equipped with other actuations than the electromagnet, e.g. hydraulic or pneumatic cylinder actuation, manual pushbutton operation.
  • In addition, the individual actuations can be supplemented with a maintained-contact function.

Function of 2/2-way valve

The force (1), generated by the actuation, acts through the lever (2), the tappet (3) on the ball (4) and presses it out of the valve seat (5). This is used to connect lines P and A, see Example. The ring (6) supports the fl ange seal from the inside. The volume fl ow is limited by the entire fl ow resistance.

Depending on the arrangement of the valve seat (5) and ball (4) the valve will have the basic position normally closed (NC) or normally open (NO).





Technical data

measured with HFA medium 97/3%, at 20°C

General
Weight see order information
Installation position any
Ambient temperature -10 to 50°C (hydraulic fluids, heed standard requirements)
Material Valve parts
Material Seals		 Stainless steel, bronze except electromagnet
NBR, PTFE

Hydraulic
max. operating pressure of connector P 320bar
max. operating pressure of connector A 320bar
max. operating pressure of connector T 50bar
max./min. control pressure of connector Z see order information
max. volume flow P->A 15 l/min
max. volume flow A->T 15 l/min
specified direction of flow P->A, A->T
Pressure fluid
- Medium - Temperature range
- Medium - Quality
- Cleanliness class, filter fineness
- Viscosity		 Water, HFA
5 bis 50°C
see Hauhinco requirements on water and HFA media
class 20/18/15, filter fineness 25µm
0,6 bis 100 mm²/s
Pressure fluid
- Medium - Temperature range
- Medium - Quality
- Cleanliness class, filter fineness
- Viscosity		 mineral oil, HLP
-10 bis 50°C
acc. to DIN 51524
Class 20/18/15, filter fineness 25µm
0,6 bis 100 mm²/s
Use of other pressure fluids on request.

Elektric
Voltage 24 VDC, 110 VAC (96 VDC), 230 VAC (205 VDC)
AC grid, admissible tolerance ± 10%
AC grid, admissible frequency 50 bis 60 Hz
Power consumption 36 W
Operating time 100% ED
Degree of protection acc. to EN60529 IP65
max. switching rate 1 Hz

Included in the scope of supply
Mounting screws of the valve Cheese-head screw M8
Cable socket of the valve solenoid
- Supply voltage 24 VDC
- Supply voltage 110 VAC
- Supply voltage 230 VAC		 according to DIN 43650 – type of design A
max. 100 VA, LED-Anzeige + Z-diode, IP65
max. 1.5 A, bridge rectifi er, LED display, IP65
max. 1.5 A, bridge rectifi er, LED display, IP65

Versions

Description Nominal size Weight Max. pressure Basic position Voltage Note Article number
2/2-way valve DN6 PN320 DN6 3,5kg 320bar NC 24VDC solenoid actuation 6546684
2/2-way valve DN6 PN320 DN6 3,5kg 320bar NC 110VAC solenoid actuation 6546692
2/2-way valve DN6 PN320 DN6 3,5kg 320bar NC 230VAC solenoid actuation 6546706
2/2-way valve DN6 PN320 DN6 3,5kg 320bar NO 24VDC solenoid actuation 6546714
2/2-way valve DN6 PN320 DN6 3,5kg 320bar NO 110VAC solenoid actuation 6546722
2/2-way valve DN6 PN320 DN6 3,5kg 320bar NO 230VAC solenoid actuation 6546730
2/2-way valve DN6 PN320 DN6 5,0kg 320bar NC 24VDC solenoid actuation with a catch 6569986
2/2-way valve DN6 PN320 DN6 5,0kg 320bar NO 24VDC solenoid actuation with a catch 6569994
2/2-way valve DN6 PN320 DN6 4,0kg 320bar NO - pushbutton control with a catch (approx. manual force 70N) 6568106
2/2-way valve DN6 PN320 DN6 4,0kg 320bar NC - pushbutton control with a catch (approx. manual force 70N) 6568114
2/2-way valve DN6 PN320 DN6 3,2kg 320bar NC - cylinder actuation pneumatic, hydraulic, weight: 3,2kg (adm. control pressure „Z“ 3-320bar) 6547923
2/2-way valve DN6 PN320 DN6 3,2kg 320bar NO - cylinder actuation pneumatic, hydraulic, weight: 3,2kg (adm. control pressure „Z“ 3-320bar) 6547958
