2/2 way proportional seat valve DN6 PN320
- Operating pressure:Â 320bar
- Nominal size(s):Â DN6
- max. Flow rate:Â 15l/min
- Ways:Â 2/2

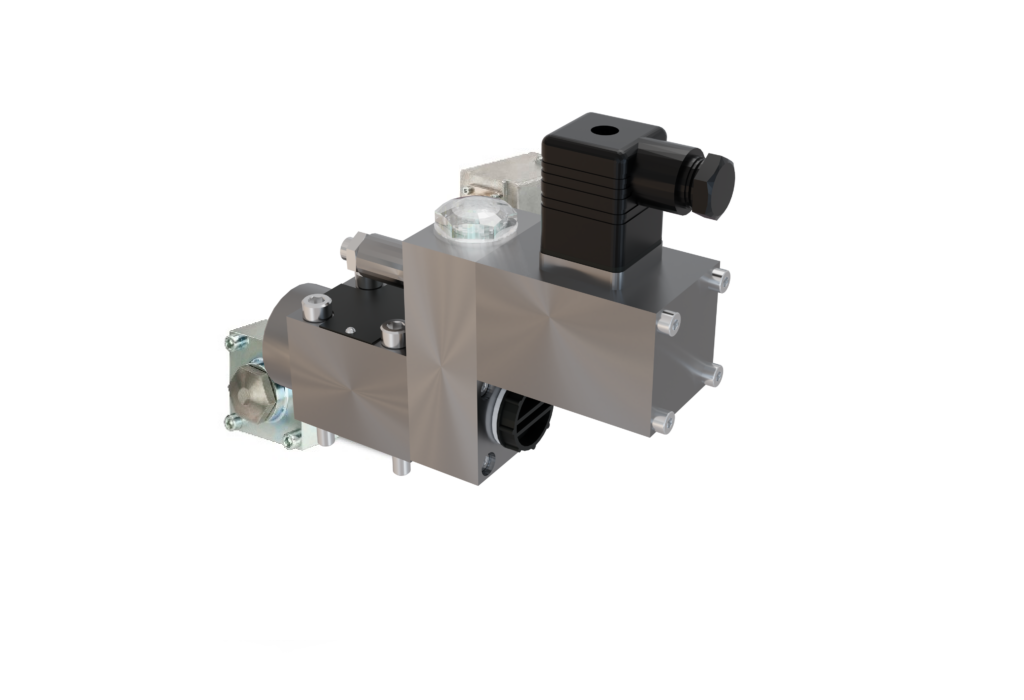

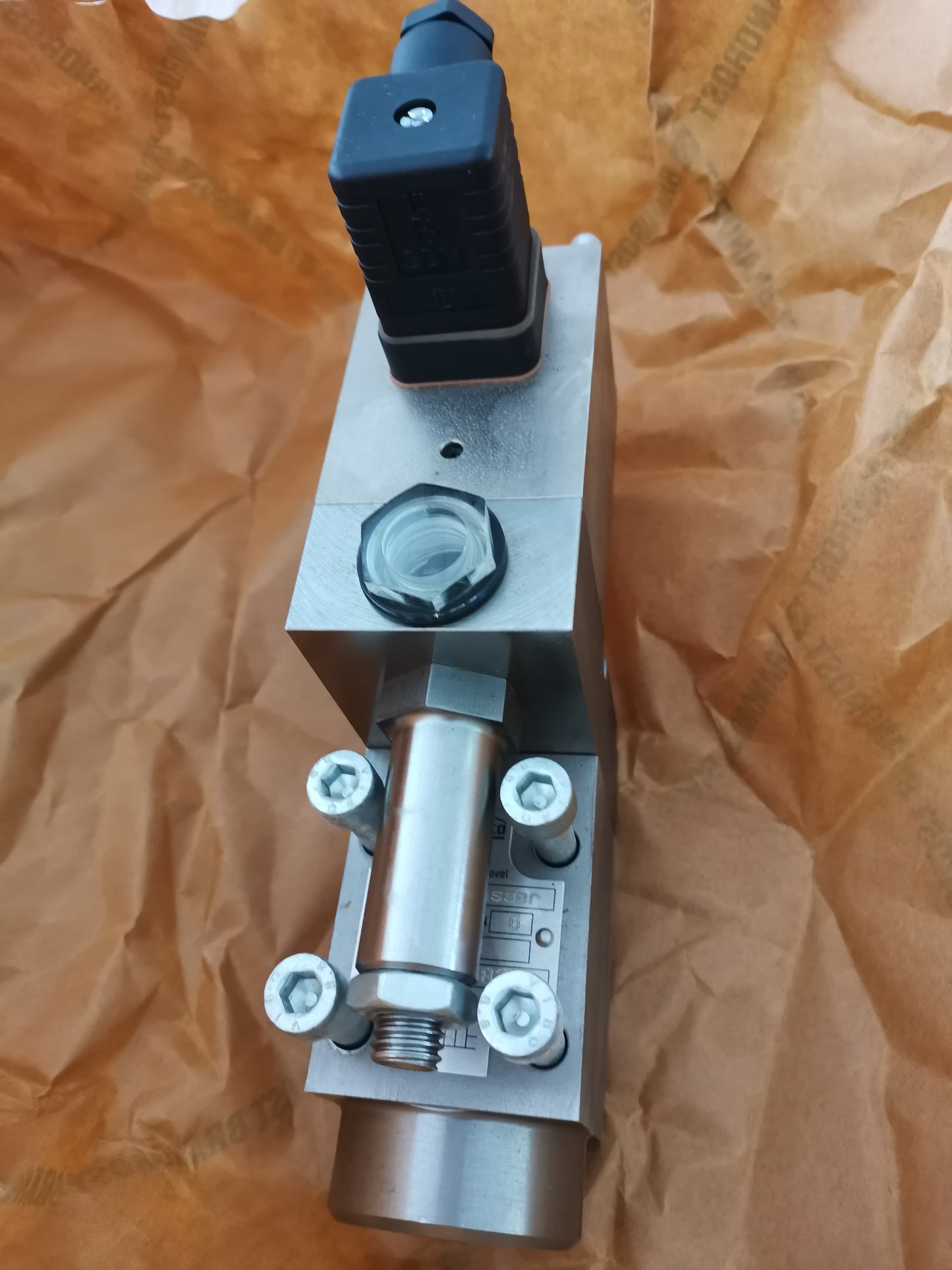

hauhinco 6546382 2/2 way proportional seat valve DN6 PN320 flow 15l/min
hauhinco 6546382 2/2 way proportional seat valve DN6 PN320 flow 15l/min
Regular price
$1,889.00 USD
Regular price
Sale price
$1,889.00 USD
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*
Features
- Directly actuated directional seat valve for liquid media
- Valve actuation by means of proportional solenoid
- The proportional solenoid is activated via the Hauhinco automatic control unit „Controller RE4“
- The valve seat provides a leak-free seal
- All parts are made of corrosion-resistant materials, and they are easily replaceable
- Valve fastening structural plate form with a Hauhinco Connection diagram
Function 2/2-way proportional seat valve
The generated magnetic force (1) acts via the lever (2), the tappet (3) onto the ball (4) and presses it out of the valve seat (5). This is used to connect lines P and A. The covers (6) support the flange seals from the inside and limits the maximum admissible volume flow. A defined actuating force can be preset (factory setting) by means of the counterspring. The proportional solenoid is electrically activated by regulated current generated as the manipulated variable by the controlled electronic control unit, the Controller RE4. The controlled valve current specifies the degree of opening of the valve, thus, ahydraulic volume flow or pressure control can be performed.
Depending on the arrangement of the valve seat (5) and ball (4) the valve will have the basic position normally closed (NC) or normally open (NO).
Technical data
measured with HFA medium 97/3%, at 20°C
General |
|
| Weight | 3,8 kg |
| Installation position | any |
| Ambient temperature | -10 to 50°C (hydraulic fluids, heed standard requirements) |
| Material Valve parts Material Seals |
Stainless steel, bronze except electromagnet NBR, PTFE |
Hydraulic |
|
| max. operating pressure of connector P | 320bar |
| max. operating pressure of connector A | 320bar |
| max. operating pressure of connector T | 50bar |
| max./min. control pressure of connector Z | see order information |
| max. volume flow P->A | 15 l/min |
| specified direction of flow | P->A |
| Pressure fluid - Medium - Temperature range - Medium - Quality - Cleanliness class, filter fineness - Viscosity |
Water, HFA 5 bis 50°C see Hauhinco requirements on water and HFA media class 20/18/15, filter fineness 25µm 0,6 bis 100 mm²/s |
| Pressure fluid - Medium - Temperature range - Medium - Quality - Cleanliness class, filter fineness - Viscosity |
mineral oil, HLP -10 bis 50°C acc. to DIN 51524 Class 20/18/15, filter fineness 25µm 0,6 bis 100 mm²/s |
| se of other pressure fluids on request. | |
Electric |
|
| Voltage | 24 VDC |
| Power consumption | 21 W |
| Operating time | 100% ED |
| Degree of protection acc. to EN60529 | IP65 |
Included in the scope of supply |
|
| Mounting screws of the valve | Cheese-head screw |
| Cable socket of the valve solenoid - Supply voltage 24 VDC |
according to DIN 43650 – type of design A max. 100 VA |
Versions
| Description | Nominal size | Weight | Max. pressure | Basic position | Voltage | Note | Article number |
|---|---|---|---|---|---|---|---|
| 2/2-way proportional valve DN6 PN320 | DN6 | 3,8kg | 320bar | NC | 24VDC | solenoid actuation | 6546382 |
| 2/2-way proportional valve DN6 PN320 | DN6 | 3,8kg | 320bar | NO | 24VDC | solenoid actuation | 6546390 |
