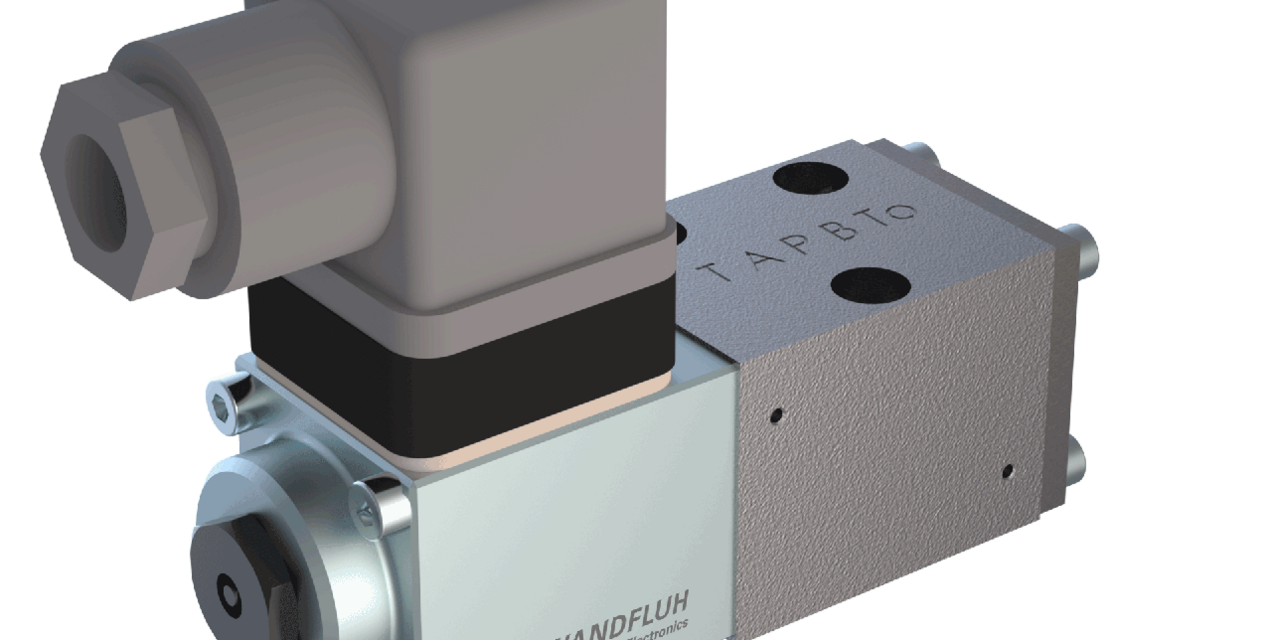

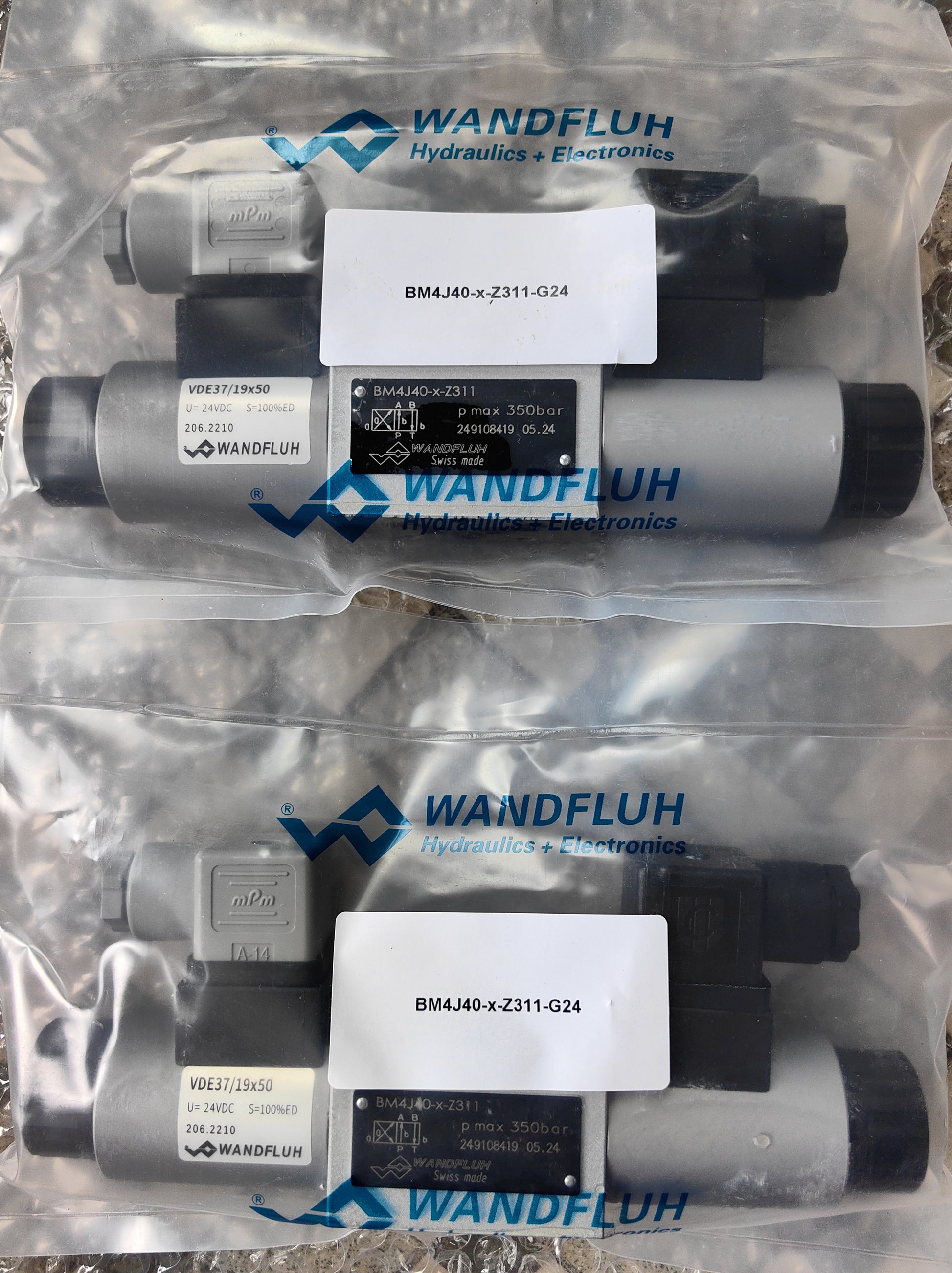

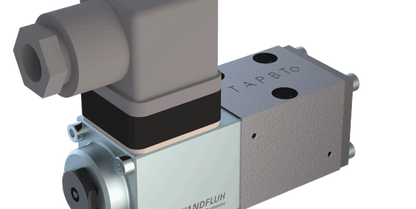

BM4J40-X-Z311-G24 Wandfluh. Direct operated solenoid spool valve with 4 connections in 5 cham- ber design. Spool detented or with spring reset.
BM4J40-X-Z311-G24 Wandfluh. Direct operated solenoid spool valve with 4 connections in 5 cham- ber design. Spool detented or with spring reset.
Regular price
$399.00 USD
Regular price
Sale price
$399.00 USD
Shipping calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*Â
GENERAL SPECIFICATIONS
Designation 4/2-, 4/3-spool valve
Construction Direct operated
Mounting Flange construction
Nominal size NG3-Mini according to Wandfluh
standard
Actuation Switching solenoid
Ambient temperature -25…+70 °C
if > +50 °C, then no undervoltage is
admissible
Weight 0,50 kg (1 solenoid)
0,65 kg (2 solenoids)
MTTFd 150 years
ELECTRICAL SPECIFICATIONSProtection class IP65Relative duty factor 100 % DFSwitching frequency 15'000 / hService life time 107 (number of switching cycles,theoretically)Voltage tolerance ± 10 % with regard to nominal voltageStandard nominalpower12 VDC, 24VDC, 115 VAC, 230 VACAC = 50 to 60 Hz, rectifier integrated inthe connector socket
HYDRAULIC SPECIFICATIONSWorking pressure pmax = 350 bar (PT < 20 bar)pmax = 315 bar (PT > 20 bar)Tank pressure pTmax = 100 barMaximum volume flow Qmax = 15 l/min, see characteristicsLeakage oil See characteristicsFluid Mineral oil, other fluid on requestViscosity range 12 mm2/s…320 mm2/sTemperature rangefluid-25…+70 °C (NBR)-20…+70 °C (FKM)ContaminationefficiencyClass 20 / 18 / 14Filtration Required filtration grade ß 10…16 ≥ 75,see data sheet 1.0-50
