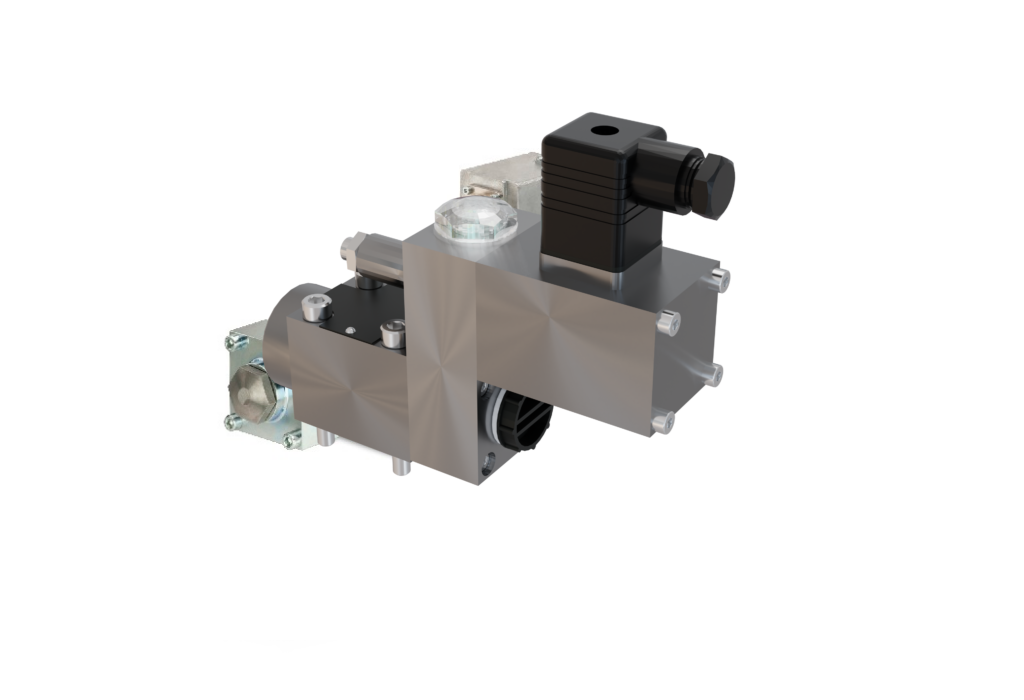

3-2 way seat valve DN3 PN320

  • Operating pressure: 320bar
  • Nominal size(s): DN3
  • max. Flow rate: 10l/min
  • Ways: 3/2

Features

  • Directly actuated directional seat valve controlling pressurised media.
  • The valve seat seals hermetically preventing internal leaks.
  • All parts are made of corrosion-resistant materials, and they are easily replaceable.
  • Valve design in a structural plate form
  • On request, the valve can be equipped with other actuations than the electromagnet, e.g. hydraulic or pneumatic cylinder actuation, manual pushbutton operation
  • In addition, the individual actuations can be supplemented with amaintained-contact function

Function of 3/2-way valve

The force (1), generated by the actuation, acts through the lever (2), the tappet (3) on the ball(s) (4) and presses it out of the right valve seat (5) and into the left valve seat (5). This is used to connect lines P and A and shut offline T, see Example. The ring (6) supports the flange seal from the inside. The volume fl ow is limited by the entire fl ow resistance.

The 3/2-way valve is provided with a „negative overlap“. During the changeover process, connections P, A and T are briefl y connected with each other. The changeover occurs so fast that the hydraulic effects are negligible. By design, a 3/2-way valve always requires the connection of a T-connector; only then a proper switching function can be ensured.

Depending on the design of the valve insert a valve with the basic position „A→T NO“ (lines A and T are connected) or „P→A NO“ (lines P and A are connected) is provided.

Technical data

measured with HFA medium 97/3%, at 20°C

General
Weight see order information
Installation position any
Ambient temperature -10 to 50°C (hydraulic fluids, heed standard requirements)
Material Valve parts
Material Seals		 Stainless steel, bronze except electromagnet
NBR, PTFE

Hydraulic
max. operating pressure of connector P 320bar
max. operating pressure of connector A 320bar
max. operating pressure of connector T 50bar
max./min. control pressure of connector Z see order information
max. volume flow P->A 10 l/min
max. volume flow A->T 10 l/min
specified direction of flow P->A, A->T
Pressure fluid
- Medium - Temperature range
- Medium - Quality
- Cleanliness class, filter fineness
- Viscosity		 Water, HFA
5 bis 50°C
see Hauhinco requirements on water and HFA media
class 20/18/15, filter fineness 25µm
0,6 bis 100 mm²/s
Pressure fluid
- Medium - Temperature range
- Medium - Quality
- Cleanliness class, filter fineness
- Viscosity		 mineral oil, HLP
-10 bis 50°C
acc. to DIN 51524
Class 20/18/15, filter fineness 25µm
0,6 bis 100 mm²/s
Use of other pressure fluids on request.

Electric
Voltage 24 VDC, 110 VAC (96 VDC), 230 VAC (205 VDC)
AC grid, admissible tolerance ± 10%
AC grid, admissible frequency 50 to 60 Hz
Power consumption 21 W
Operating time 100% ED
Degree of protection acc. to EN60529 IP65
max. switching rate 1 Hz

Included in the scope of supply
Mounting screws of the valve Cheese-head screw M6
Cable socket of the valve solenoid
- Supply voltage 24 VDC
- Supply voltage 110 VAC
- Supply voltage 230 VAC		 according to DIN 43650 – type of design A
max. 100 VA, LED-Anzeige + Z-diode, IP65
max. 1.5 A, bridge rectifier, LED display, IP65
max. 1.5 A, bridge rectifier, LED display, IP65

Versions

Description Nominal size Weight Max. pressure Basic position Voltage Note Article number
3/2-way valve DN3 PN320 DN3 1,9kg 320bar A->T NO 24VDC solenoid actuation 6545599
3/2-way valve DN3 PN320 DN3 1,9kg 320bar A->T NO 110VAC solenoid actuation 6545637
3/2-way valve DN3 PN320 DN3 1,9kg 320bar A->T NO 230VAC solenoid actuation 6545688
3/2-way valve DN3 PN320 DN3 1,9kg 320bar P->A NO 24VDC solenoid actuation 6545602
3/2-way valve DN3 PN320 DN3 1,9kg 320bar P->A NO 110VAC solenoid actuation 6545645
3/2-way valve DN3 PN320 DN3 1,9kg 320bar P->A NO 230VAC solenoid actuation 6545696
3/2-way valve DN3 PN320 DN3 3,5kg 320bar A->T NO 24VDC solenoid actuation with a catch 6574866
3/2-way valve DN3 PN320 DN3 3,5kg 320bar P->A NO 24VDC solenoid actuation with a catch 6574874
3/2-way valve DN3 PN320 DN3 1,6kg 320bar A->T NO 230VAC solenoid actuation with a catch 6577938
3/2-way valve DN3 PN320 DN3 1,6kg 320bar A->T NO - cylinder actuation, pneumatic, hydraulic (control pressure „Z“ 3-320bar) 6547818
3/2-way valve DN3 PN320 DN3 1,6kg 320bar P->A NO - cylinder actuation, pneumatic, hydraulic (control pressure „Z“ 3-320bar) 6547834
3/2-way valve DN3 PN320 DN3 1,6kg 320bar A->T NO - pushbutton control 6570976
3/2-way valve DN3 PN320 DN3 1,6kg 320bar P->A NO - pushbutton control 6570984
3/2-way valve DN3 PN320 DN3 2,8kg 320bar A->T NO - pushbutton control with a catch (ca. 30N) 6568378
3/2-way valve DN3 PN320 DN3 2,8kg 320bar P->A NO - pushbutton control with a catch (ca. 30N) 6568386
