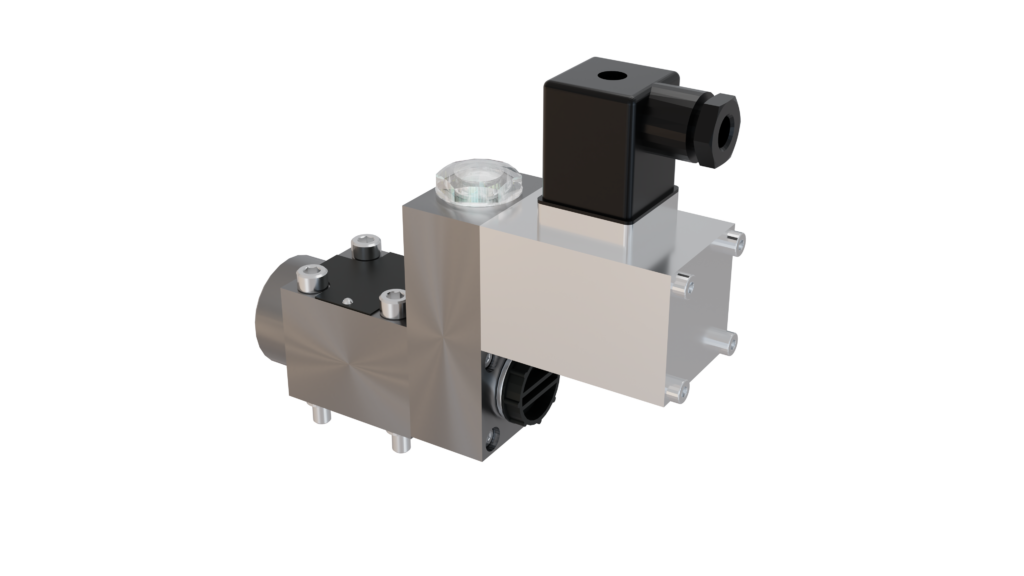

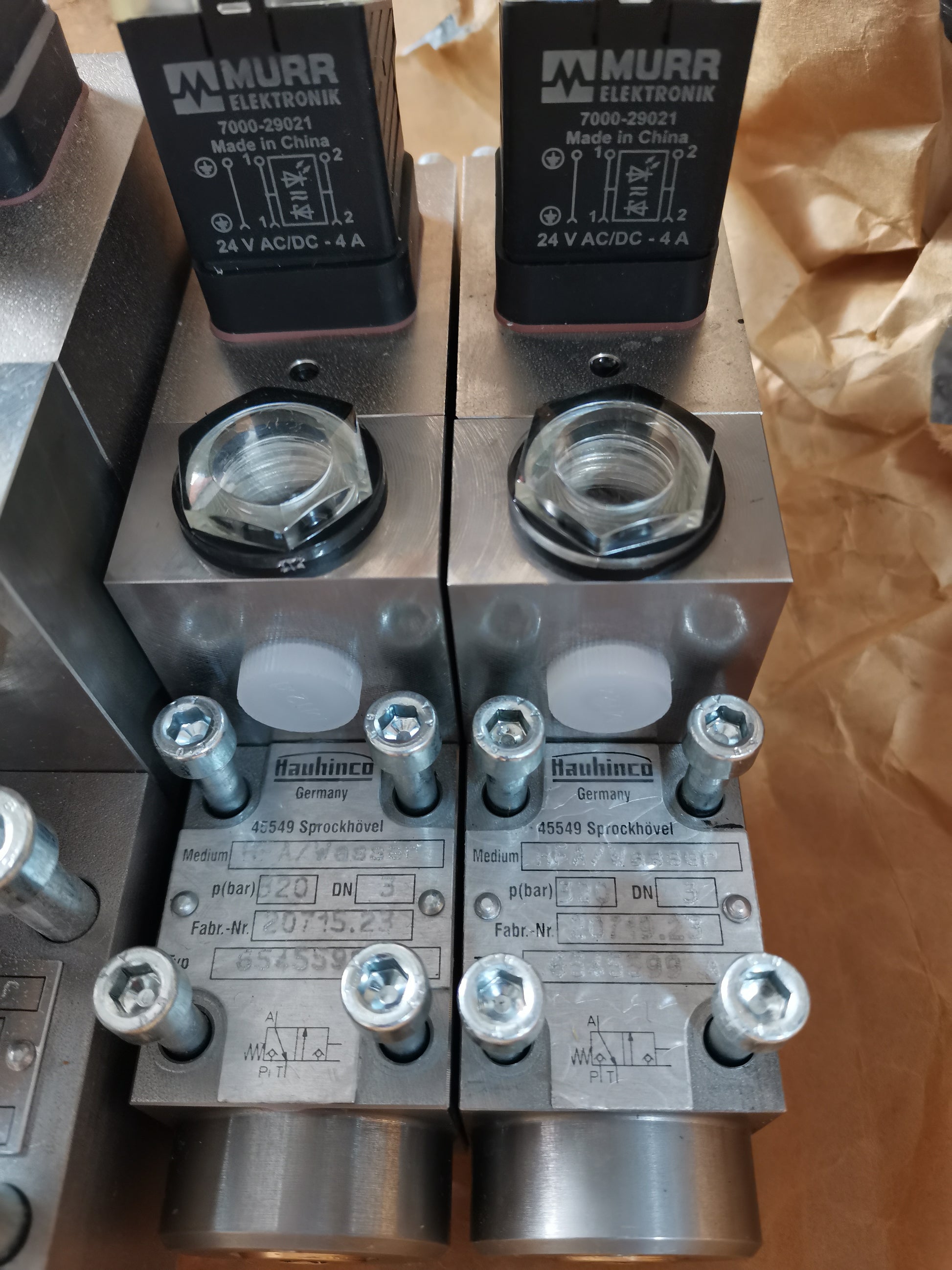

6545599 hauhinco 2-2 way seat valve DN3 PN320
6545599 hauhinco 2-2 way seat valve DN3 PN320
Regular price
$1,199.00 USD
Regular price
Sale price
$1,199.00 USD
Shipping calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***
*Image shown is a representation only. Actual product may vary*
Â
Features
- Directly actuated directional seat valve controlling pressurised media.
- The valve seat seals hermetically preventing internal leaks.
- All parts are made of corrosion-resistant materials, and they are easily replaceable.
- Valve design in a structural plate form
- On request, the valve can be equipped with other actuations than the electromagnet, e.g. hydraulic or pneumatic cylinder actuation, manual pushbutton operation
- In addition, the individual actuations can be supplemented with amaintained-contact function
Function of 3/2-way valve
The force (1), generated by the actuation, acts through the lever (2), the tappet (3) on the ball(s) (4) and presses it out of the right valve seat (5) and into the left valve seat (5). This is used to connect lines P and A and shut offline T, see Example. The ring (6) supports the flange seal from the inside. The volume fl ow is limited by the entire fl ow resistance.
The 3/2-way valve is provided with a „negative overlap“. During the changeover process, connections P, A and T are briefl y connected with each other. The changeover occurs so fast that the hydraulic effects are negligible. By design, a 3/2-way valve always requires the connection of a T-connector; only then a proper switching function can be ensured.
Depending on the design of the valve insert a valve with the basic position „A→T NO“ (lines A and T are connected) or „P→A NO“ (lines P and A are connected) is provided.
Technical data
measured with HFA medium 97/3%, at 20°C
General |
|
| Weight | see order information |
| Installation position | any |
| Ambient temperature | -10 to 50°C (hydraulic fluids, heed standard requirements) |
| Material Valve parts Material Seals |
Stainless steel, bronze except electromagnet NBR, PTFE |
Hydraulic |
|
| max. operating pressure of connector P | 320bar |
| max. operating pressure of connector A | 320bar |
| max. operating pressure of connector T | 50bar |
| max./min. control pressure of connector Z | see order information |
| max. volume flow P->A | 10 l/min |
| max. volume flow A->T | 10 l/min |
| specified direction of flow | P->A, A->T |
| Pressure fluid - Medium - Temperature range - Medium - Quality - Cleanliness class, filter fineness - Viscosity |
Water, HFA 5 bis 50°C see Hauhinco requirements on water and HFA media class 20/18/15, filter fineness 25µm 0,6 bis 100 mm²/s |
| Pressure fluid - Medium - Temperature range - Medium - Quality - Cleanliness class, filter fineness - Viscosity |
mineral oil, HLP -10 bis 50°C acc. to DIN 51524 Class 20/18/15, filter fineness 25µm 0,6 bis 100 mm²/s |
| Use of other pressure fluids on request. | |
Electric |
|
| Voltage | 24 VDC, 110 VAC (96 VDC), 230 VAC (205 VDC) |
| AC grid, admissible tolerance | ± 10% |
| AC grid, admissible frequency | 50 to 60 Hz |
| Power consumption | 21 W |
| Operating time | 100% ED |
| Degree of protection acc. to EN60529 | IP65 |
| max. switching rate | 1 Hz |
Included in the scope of supply |
|
| Mounting screws of the valve | Cheese-head screw M6 |
| Cable socket of the valve solenoid - Supply voltage 24 VDC - Supply voltage 110 VAC - Supply voltage 230 VAC |
according to DIN 43650 – type of design A max. 100 VA, LED-Anzeige + Z-diode, IP65 max. 1.5 A, bridge rectifier, LED display, IP65 max. 1.5 A, bridge rectifier, LED display, IP65 |
Versions
| Description | Nominal size | Weight | Max. pressure | Basic position | Voltage | Note | Article number |
|---|---|---|---|---|---|---|---|
| 3/2-way valve DN3 PN320 | DN3 | 1,9kg | 320bar | A->T NO | 24VDC | solenoid actuation | 6545599 |
| 3/2-way valve DN3 PN320 | DN3 | 1,9kg | 320bar | A->T NO | 110VAC | solenoid actuation | 6545637 |
| 3/2-way valve DN3 PN320 | DN3 | 1,9kg | 320bar | A->T NO | 230VAC | solenoid actuation | 6545688 |
| 3/2-way valve DN3 PN320 | DN3 | 1,9kg | 320bar | P->A NO | 24VDC | solenoid actuation | 6545602 |
| 3/2-way valve DN3 PN320 | DN3 | 1,9kg | 320bar | P->A NO | 110VAC | solenoid actuation | 6545645 |
| 3/2-way valve DN3 PN320 | DN3 | 1,9kg | 320bar | P->A NO | 230VAC | solenoid actuation | 6545696 |
| 3/2-way valve DN3 PN320 | DN3 | 3,5kg | 320bar | A->T NO | 24VDC | solenoid actuation with a catch | 6574866 |
| 3/2-way valve DN3 PN320 | DN3 | 3,5kg | 320bar | P->A NO | 24VDC | solenoid actuation with a catch | 6574874 |
| 3/2-way valve DN3 PN320 | DN3 | 1,6kg | 320bar | A->T NO | 230VAC | solenoid actuation with a catch | 6577938 |
| 3/2-way valve DN3 PN320 | DN3 | 1,6kg | 320bar | A->T NO | - | cylinder actuation, pneumatic, hydraulic (control pressure „Z“ 3-320bar) | 6547818 |
| 3/2-way valve DN3 PN320 | DN3 | 1,6kg | 320bar | P->A NO | - | cylinder actuation, pneumatic, hydraulic (control pressure „Z“ 3-320bar) | 6547834 |
| 3/2-way valve DN3 PN320 | DN3 | 1,6kg | 320bar | A->T NO | - | pushbutton control | 6570976 |
| 3/2-way valve DN3 PN320 | DN3 | 1,6kg | 320bar | P->A NO | - | pushbutton control | 6570984 |
| 3/2-way valve DN3 PN320 | DN3 | 2,8kg | 320bar | A->T NO | - | pushbutton control with a catch (ca. 30N) | 6568378 |
| 3/2-way valve DN3 PN320 | DN3 | 2,8kg | 320bar | P->A NO | - | pushbutton control with a catch (ca. 30N) | 6568386 |
