D765-1048G-5 moog Servovalves with integrated Electronics D765 Series ISO 10372 Size 04

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting manufacture directly.***

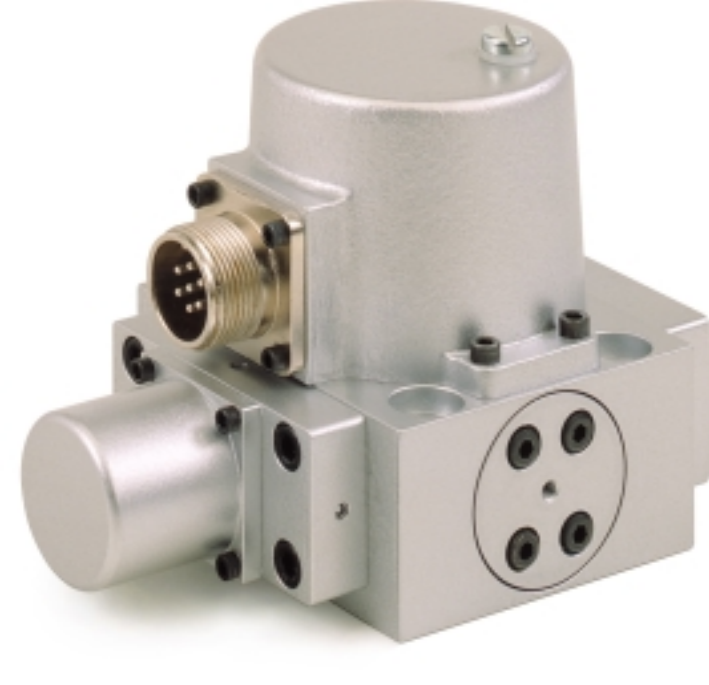

*Image shown is a representation only. Actual product may vary*

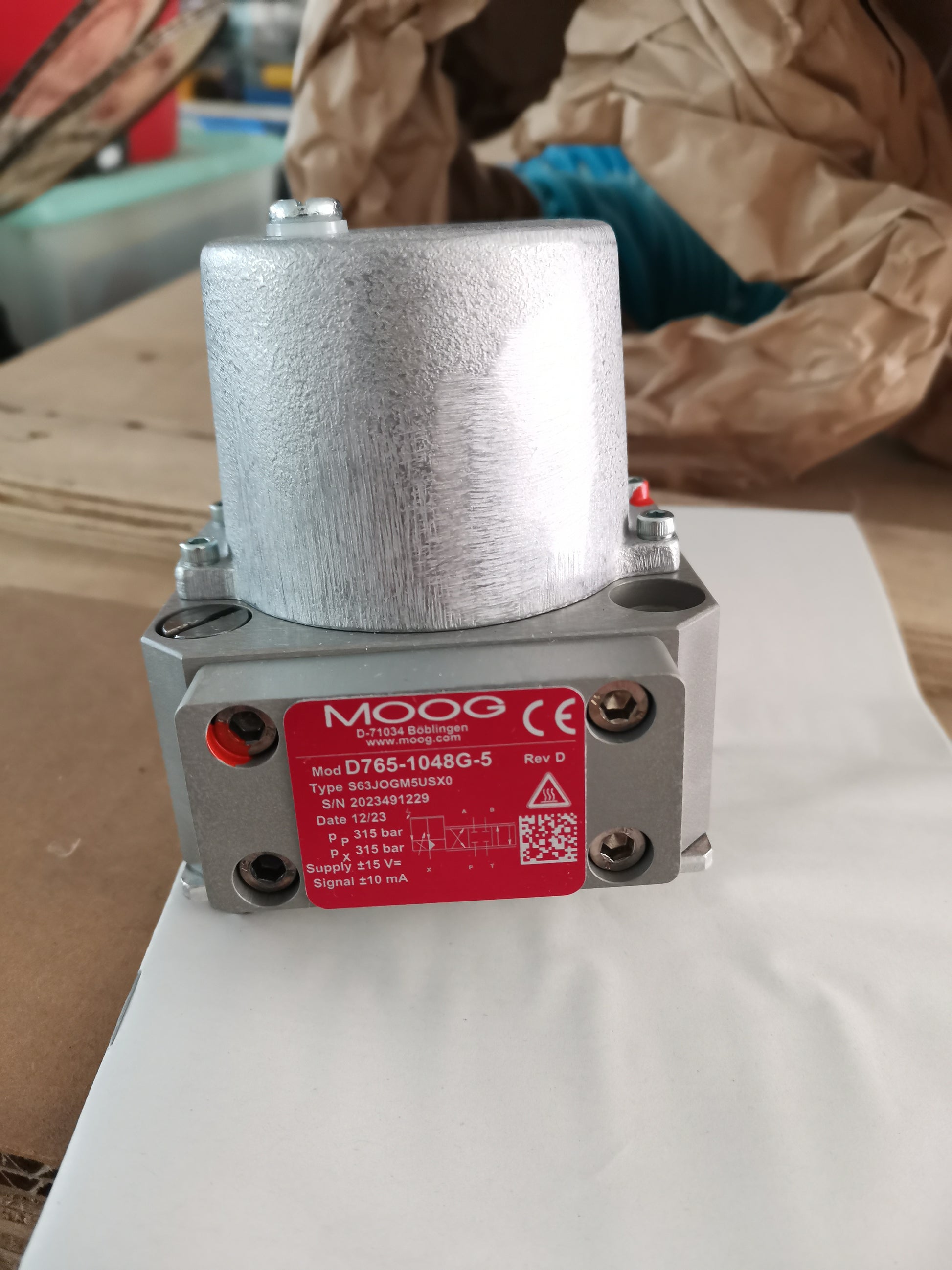

D765-1048G-5  D765 Series
Two stage Servovalves

Operating pressure
Ports P, X, A and B up to 315 bar
Port T up to 210 bar
Temperature range
Ambient -20 to +60 °C
Fluid -20 to +80 °C
Seal material FPM, others on request
Operating fluid Mineral oil based hydraulic fluid
(DIN 51524 part 1 to 3), other
fluids on request
Viscosity recommended 15 to 100 mm²/s
System filtration: High pressure filter (without bypass, but with dirt
alarm) mounted in the main flow and if possible directly upstream
of the valve.
Class of cleanliness: The cleanliness of the hydraulic fluid particularly
effects the performance (spool positioning, high resolution) and
wear (metering edges, pressure gain, leakage) of the servovalve.
Recommended cleanliness class
For normal operation: ISO 4406 < 14/11
For longer life: ISO 4406 < 13/10
Filter rating recommended
For normal operation: ß10  75 (10 µm absolute)
For longer life: ß 5  75 (5 µm absolute)
Installation options any position, fixed or movable
Vibration 30 g, 3 axes
Mass 1,1 kg
Degree of protection EN 60529: class IP 65, with mating
connector mounted
Shipping plate Delivered with an oil sealed
shipping plate
